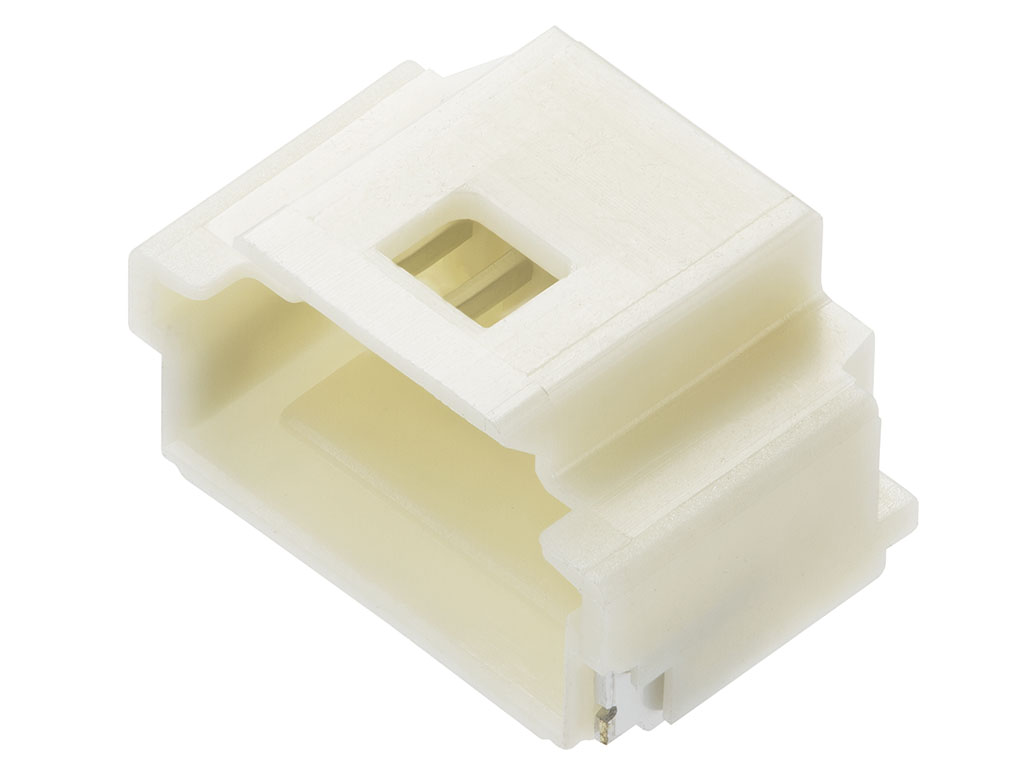

Pico-Clasp Pico-Clasp 连接器_501568-0607规格参数_原装供应
作者：小编-接插世界网来源：网络浏览量：467时间：2024-10-21 16:14:38
产品系列特点介绍
Pico-Clasp 连接器间距 1.00 毫米的线对板 Pico-Clasp 连接器是 Molex 莫仕的主打产品，该多功能系统可提供一系列镀层和设计选择，几乎适合所有应用。 |
|
产品亮点
特性和优点
总览
间距 1.00 毫米的线对板 Pico-Clasp 连接器系统可提供 2 至 50 的电路尺寸和一系列插座头型号，非常适合空间受限应用。
广泛的设计选型包括镀金和镀锡，既提供了设计灵活性，又可简单地兼容产品系列。
按行业划分的应用
家用电器
Air conditioner
Notebook PC
Televisions
汽车
Electronic modules
工业自动化
Servo motor
医疗技术
Patient Monitor
这并非此产品应用的最终名单。它只包括一些最常见的用途。
资源
-
Pico-Clasp线对板连接器
数据表 (PDF)
产品详情
 | | | | | | |||||
| 产品编号 | 5015680607 | 5015680707 | 5015680807 | 5015680907 | 5015681007 | 5015681107 | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| 描述 | 1.00mm Pitch, Pico-Clasp PCB Header, Single Row, Right-Angle, Surface Mount, Tin Plated, Inner Positive Lock, 6 Circuits, Natural | 1.00mm Pitch, Pico-Clasp PCB Header, Single Row, Right-Angle, Surface Mount, Tin Plated, Inner Positive Lock, 7 Circuits, Natural | 1.00mm Pitch, Pico-Clasp PCB Header, Single Row, Right-Angle, Surface Mount, Tin Plated, Inner Positive Lock, 8 Circuits, Natural | 1.00mm Pitch, Pico-Clasp PCB Header, Single Row, Right-Angle, Surface Mount, Tin Plated, Inner Positive Lock, 9 Circuits, Natural | 1.00mm Pitch, Pico-Clasp PCB Header, Single Row, Right-Angle, Surface Mount, Tin Plated, Inner Positive Lock, 10 Circuits, Natural | 1.00mm Pitch, Pico-Clasp PCB Header, Single Row, Right-Angle, Surface Mount, Tin Plated, Inner Positive Lock, 11 Circuits, Natural | ||||
| 常规 | ||||||||||
| 状态 | Active | Active | Active | Active | Active | Active | ||||
| 类别 | PCB Headers and Receptacles | PCB Headers and Receptacles | PCB Headers and Receptacles | PCB Headers and Receptacles | PCB Headers and Receptacles | PCB Headers and Receptacles | ||||
| Series | 501568 | 501568 | 501568 | 501568 | 501568 | 501568 | ||||
| 应用 | Signal,Wire-to-Board | Signal,Wire-to-Board | Signal,Wire-to-Board | Signal,Wire-to-Board | Signal,Wire-to-Board | Signal,Wire-to-Board | ||||
| 元件类型 | PCB Header | PCB Header | PCB Header | PCB Header | PCB Header | PCB Header | ||||
| 产品名称 | Pico-Clasp | Pico-Clasp | Pico-Clasp | Pico-Clasp | Pico-Clasp | Pico-Clasp | ||||
| UPC | 822348871827 | 822348871834 | 822348871841 | 822348871858 | 822348871865 | 822348871872 | ||||
| 物理 | ||||||||||
| 断开 | No | No | No | No | No | No | ||||
| 回路数（已载入） | 6 | 7 | 8 | 9 | 10 | 11 | ||||
| 电路数（最多） | 6 | 7 | 8 | 9 | 10 | 11 | ||||
| 颜色-树脂 | Natural | Natural | Natural | Natural | Natural | Natural | ||||
| 耐用性(插拔次数) - 最多次数 | 30 | 30 | 30 | 30 | 30 | 30 | ||||
| 先接后断 | No | No | No | No | No | No | ||||
| 符合灼热丝规范 | No | No | No | No | No | No | ||||
| 锁定插接部位 | Yes | Yes | Yes | Yes | Yes | Yes | ||||
| 材料 - 金属 | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | ||||
| 材料 - 接合部位电镀 | Tin | Tin | Tin | Tin | Tin | Tin | ||||
| 材料 - 终端电镀 | Tin | Tin | Tin | Tin | Tin | Tin | ||||
| 材料 - 树脂 | Nylon | Nylon | Nylon | Nylon | Nylon | Nylon | ||||
| 净重 | 152.650/mg | 167.990/mg | 183.330/mg | 198.680/mg | 214.020/mg | 229.360/mg | ||||
| 行数 | 1 | 1 | 1 | 1 | 1 | 1 | ||||
| 方向 | Right Angle | Right Angle | Right Angle | Right Angle | Right Angle | Right Angle | ||||
| 包装形式 | Embossed Tape on Reel | Embossed Tape on Reel | Embossed Tape on Reel | Embossed Tape on Reel | Embossed Tape on Reel | Embossed Tape on Reel | ||||
| PCB 定位器 | No | No | No | No | No | No | ||||
| PCB 保持力 | Yes | Yes | Yes | Yes | Yes | Yes | ||||
| 间距 - 插配接口 | 1.00mm | 1.00mm | 1.00mm | 1.00mm | 1.00mm | 1.00mm | ||||
| 有极性的插配件 | Yes | Yes | Yes | Yes | Yes | Yes | ||||
| PCB 极性 | No | No | No | No | No | No | ||||
| 有护墙的 | Fully | Fully | Fully | Fully | Fully | Fully | ||||
| 可堆叠的 | No | No | No | No | No | No | ||||
| 运行温度范围 | -40° to +105°C | -40° to +105°C | -40° to +105°C | -40° to +105°C | -40° to +105°C | -40° to +105°C | ||||
| 终端界面类型 | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | ||||
| 电气 | ||||||||||
| 每触点最大电流 | 1.0A | 1.0A | 1.0A | 1.0A | 1.0A | 1.0A | ||||
| 电压 - 最大 | 100V AC (RMS)/DC | 100V AC (RMS)/DC | 100V AC (RMS)/DC | 100V AC (RMS)/DC | 100V AC (RMS)/DC | 100V AC (RMS)/DC | ||||
| 机构 | ||||||||||
| UL | E29179 | E29179 | E29179 | E29179 | E29179 | E29179 | ||||
| 产品环境合规 | ||||||||||
| China RoHS |  per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | ||||
| EU ELV | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Compliant per 2000/53/EC | Not Relevant | ||||
| EU RoHS | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | ||||
| GADSL/IMDS | Compliant with Exemption 44; 33 | Compliant with Exemption 44; 33 | Compliant with Exemption 44; 33 | Compliant with Exemption 44; 33 | Not Relevant | Compliant with Exemption 44; 33 | ||||
| Low-Halogen Status | Not Low-Halogen per IEC 61249-2-21 | Not Low-Halogen per IEC 61249-2-21 | Not Low-Halogen per IEC 61249-2-21 | Not Low-Halogen per IEC 61249-2-21 | Not Low-Halogen per IEC 61249-2-21 | Not Low-Halogen per IEC 61249-2-21 | ||||
| Prop65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | ||||
| REACH SVHC | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | ||||
| 配插使用 | ||||||||||
| 产品编号 | 501330 | 501330 | 501330 | 501330 | 501330 | 501330 | ||||
| 可装的端子等部件 | ||||||||||
| 产品编号 | - | - | - | - | - | - | ||||
