| 间距： | 电路数： | 最大 电流额定下降： |
|---|---|---|
| 2.50 毫米 | 2 - 15 | 4.0A |
Mini-SPOX Mini-SPOX 连接器_5037-5023中文规格_现货库存
作者：小编-接插世界网来源：网络浏览量：855时间：2024-11-02 08:20:54
产品系列特点介绍
Mini-SPOX 连接器Mini-SPOX 2.50 毫米线对板连接器系统非常适合紧凑型应用，为耐高温设计提供电气和机械可靠性，可满足汽车、消费品和工业应用的要求。 |
|
产品亮点
特性和优点
总览
加固型汽车和工业应用可能会受到冲击、振动或粗暴对待，这些情况可能会导致端子脱落和信号干扰。Mini-SPOX 线对板连接器系统带有摩擦锁，可提供牢固的插配保持力。高保持力可在恶劣环境中提供电气可靠性。
在超小型线对板应用中，操作人员有时未能确保正确的插配方向。这可能会导致最终产品故障。Mini-SPOX 独特的非矩形外壳形状可确保插配方向正确。
由于需要越来越多元件，消费品行业和汽车行业的设计人员常常面临印刷线路板空间不足这一难题。Mini-SPOX 线对板连接器系统间距十分紧凑，为 2.50 毫米，并带有牢固的摩擦锁。
客户选择来自不同供应商的不同连接器，这使得他们的采购过程变得复杂，并且经常导致兼容性问题。Mini-SPOX 线对板连接器系统提供 2 到 15 个电路的单排连接器，具有垂直和直角配置。此外，Molex 莫仕提供多种连接器，可满足几乎所有市场的各种连接器要求。
按行业划分的应用
家用电器
Air conditioner
Desktop PCs
Vacuum cleaners
汽车
Internal connection with other units
Shifters
Steering wheel, paddle shift, combination switches
工业自动化
Automation equipment
这并非此产品应用的最终名单。它只包括一些最常见的用途。
资源
-
Mini-SPOX 2.50毫米线对板连接器
数据表 (PDF)

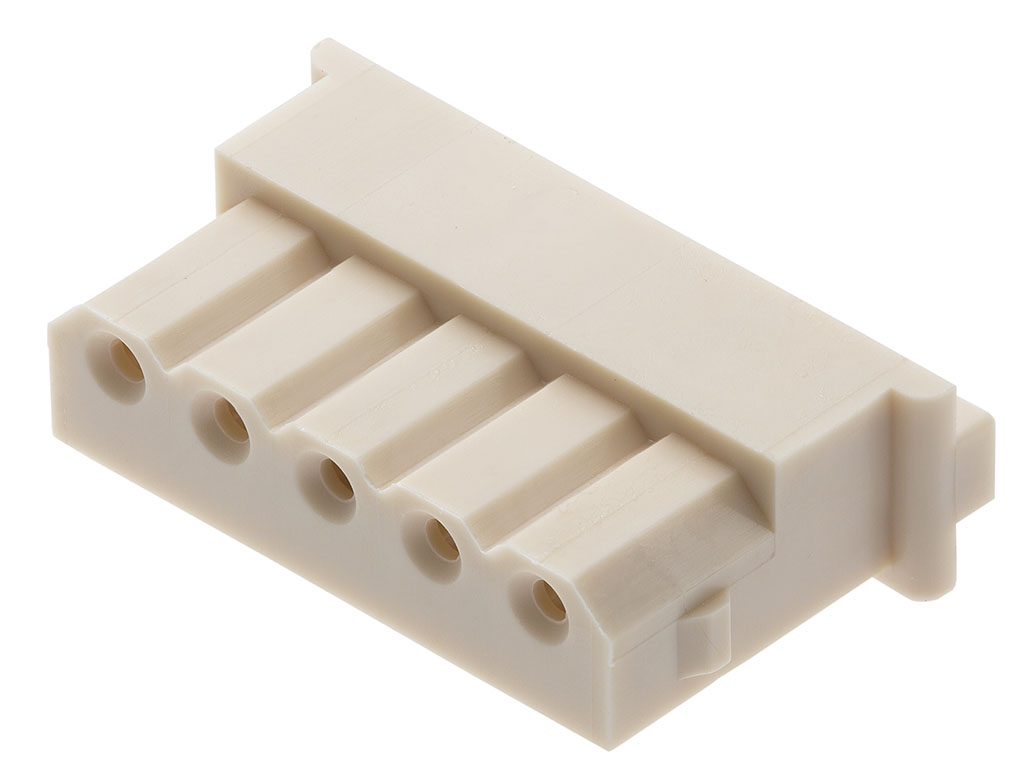

产品详情
 | | | | | | | | | | |
| 产品编号 | 50375023 | 50375033 | 50375043 | 50375053 | 50375063 | 50375073 | 50375083 | 50375093 | 50375103 | 50375113 |
|---|---|---|---|---|---|---|---|---|---|---|
| 描述 | 2.50mm Pitch, Mini-SPOX Receptacle Crimp Housing, Single Row, Friction Lock, 2 Circuits, Natural | 2.50mm Pitch, Mini-SPOX Receptacle Crimp Housing, Single Row, Friction Lock, 3 Circuits, Natural | 2.50mm Pitch, Mini-SPOX Receptacle Crimp Housing, Single Row, Friction Lock, 4 Circuits, Natural | 2.50mm Pitch, Mini-SPOX Receptacle Crimp Housing, Single Row, Friction Lock, 5 Circuits, Natural | 2.50mm Pitch, Mini-SPOX Receptacle Crimp Housing, Single Row, Friction Lock, 6 Circuits, Natural | 2.50mm Pitch, Mini-SPOX Receptacle Crimp Housing, Single Row, Friction Lock, 7 Circuits, Natural | 2.50mm Pitch, Mini-SPOX Receptacle Crimp Housing, Single Row, Friction Lock, 8 Circuits, Natural | 2.50mm Pitch, Mini-SPOX Receptacle Crimp Housing, Single Row, 9 Circuits, Natural | 2.50mm Pitch, Mini-SPOX Receptacle Crimp Housing, Single Row, 10 Circuits, Natural | 2.50mm Pitch, Mini-SPOX Receptacle Crimp Housing, Single Row, 11 Circuits, Natural |
| 常规 | ||||||||||
| 状态 | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| 类别 | Connector Housings | Connector Housings | Connector Housings | Connector Housings | Connector Housings | Connector Housings | Connector Housings | Connector Housings | Connector Housings | Connector Housings |
| Series | 5264 | 5264 | 5264 | 5264 | 5264 | 5264 | 5264 | 5264 | 5264 | 5264 |
| 应用 | Signal,Wire-to-Board | Signal,Wire-to-Board | Signal,Wire-to-Board | Signal,Wire-to-Board | Signal,Wire-to-Board | Signal,Wire-to-Board | Signal,Wire-to-Board | Signal,Wire-to-Board | Signal,Wire-to-Board | Signal,Wire-to-Board |
| 产品名称 | Mini-SPOX | Mini-SPOX | Mini-SPOX | Mini-SPOX | Mini-SPOX | Mini-SPOX | Mini-SPOX | Mini-SPOX | Mini-SPOX | Mini-SPOX |
| UPC | 800753578340 | 800753578357 | 800753578364 | 800753725249 | 800753578371 | 800753749528 | 800753578388 | 800753578395 | 800753749535 | 800753578401 |
| 物理 | ||||||||||
| 电路数（最多） | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| 颜色-树脂 | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural |
| 阻燃性 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| 性别 | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| 符合灼热丝规范 | No | No | No | No | No | No | No | No | No | No |
| 锁定插接部位 | Yes | Yes | Yes | Yes | Yes | Yes | Yes | No | No | No |
| 材料 - 树脂 | Nylon | Nylon | Nylon | Nylon | Nylon | Nylon | Nylon | Nylon | Nylon | Nylon |
| 净重 | 0.130/g | 172.100/mg | 224.900/mg | 277.700/mg | 330.500/mg | 383.300/mg | 436.100/mg | 488.900/mg | 541.800/mg | 594.600/mg |
| 行数 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 包装形式 | Bag | Bag | Bag | Bag | Bag | Bag | Bag | Bag | Bag | Bag |
| 面板安装式 | No | No | No | No | No | No | No | No | No | No |
| 间距 - 插配接口 | 2.50mm | 2.50mm | 2.50mm | 2.50mm | 2.50mm | 2.50mm | 2.50mm | 2.50mm | 2.50mm | 2.50mm |
| 有极性的插配件 | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 可堆叠的 | No | No | No | No | No | No | No | No | No | No |
| 运行温度范围 | -55° to +105°C | -55° to +105°C | -55° to +105°C | -55° to +105°C | -55° to +105°C | -55° to +105°C | -55° to +105°C | -55° to +105°C | -55° to +105°C | -55° to +105°C |
| 机构 | ||||||||||
| UL | E29179 | E29179 | E29179 | E29179 | E29179 | E29179 | E29179 | E29179 | E29179 | E29179 |
| 产品环境合规 | ||||||||||
| China RoHS |  per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 |
| EU ELV | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant |
| EU RoHS | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 |
| GADSL/IMDS | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant |
| Low-Halogen Status | Low-Halogen per IEC 61249-2-21 | Low-Halogen per IEC 61249-2-21 | Low-Halogen per IEC 61249-2-21 | Low-Halogen per IEC 61249-2-21 | Low-Halogen per IEC 61249-2-21 | Low-Halogen per IEC 61249-2-21 | Low-Halogen per IEC 61249-2-21 | Low-Halogen per IEC 61249-2-21 | Low-Halogen per IEC 61249-2-21 | Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) |
| 配插使用 | ||||||||||
| 产品编号 | 5267, 5268 | 5267, 5268 | 5267, 5268 | 5267, 5268 | 5267, 5268 | 5267, 5268 | 5267, 5268 | 5267, 5268 | 5267, 5268 | 5267, 5268 |
| 可装的端子等部件 | ||||||||||
| 产品编号 | 5263 | 5263 | 5263 | 5263 | 5263 | 5263 | 5263 | 5263 | 5263 | 5263 |
