产品系列特点介绍

Milli-Grid 连接器

高密度连接器系统，采用 2.00 x 2.00 毫米网格样式，为线对板、板对板和缆对板应用提供全方位设计灵活性。

产品亮点

间距：	电路数：	最大电流额定下降：
2.00 毫米	2 - 50	4.5A

特性和优点

镀金或镀金型号可选：
镀锡型号节约成本，接触电阻低，焊接性能佳

中心极性键：
防止错配

IDT 插座应力消除片（可选）：
增强电缆固定性

锁定窗：
确保牢固锁定插座

提前接入系统压接端子：
引脚防磨、耐用持久，接触更加牢固可靠

锁紧斜坡：
为插座头确保牢固固定

中心极性插槽：
防止错配

标记功能：
标记第一电路位置

总览

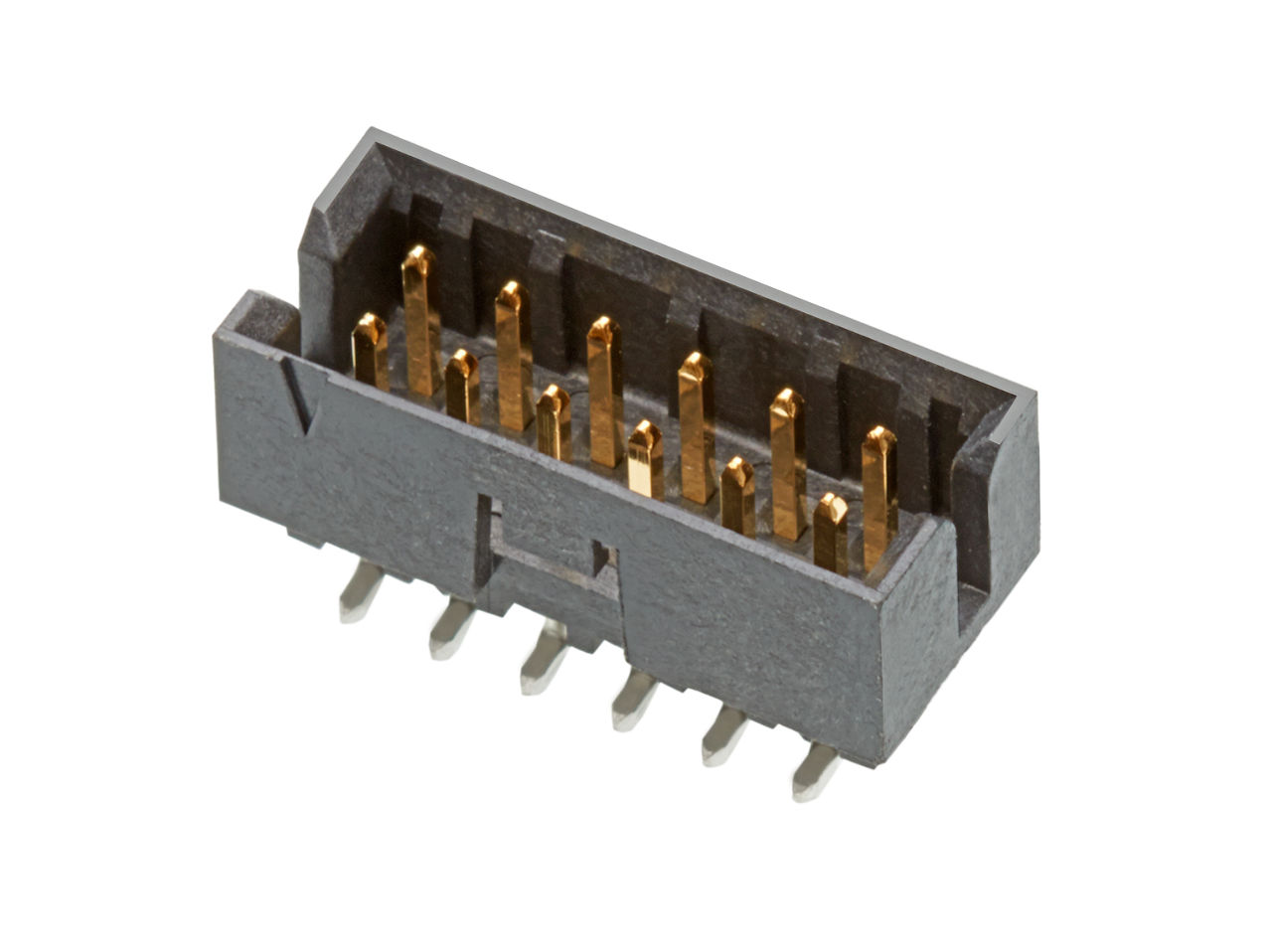

Molex 莫仕 Milli-Grid 产品家族提供镀金和镀锡两种型号，包括压接端子、外壳插座、插座头和插座。插座有单排和双排可供选择，插配和端接选件丰富齐全插座头有护盖和无护盖两种样式。

按行业划分的应用

家用电器

Countertop
Dishwasher
Dryer
Microwave
Oven
Refrigerator
Washing machine

汽车

woman traveler in motion of enjoying takes a look scenery view on the peak of mountain at the morning light, joyful taking mind cheerfully with set of hot coffee time on the cliff of mountain, hight range of the risk area camping with the car transport belong

Car audio
Data / Telemetry
GPS

电信

Routers and switches
Servers
Switches

这并非此产品应用的最终名单。它只包括一些最常见的用途。

资源

手册 (PDF)

Glow Wire Products

数据表 (PDF)

Milli-Grid BMI (Blind Mate Interface) Connectors

产品详情


产品编号	503948051	503948052	503948054	503948100	503948200	503948400	503948999
描述	2.00mm Pitch, Milli-Grid Female Crimp Terminal, 0.38µm Select Gold, Reel, Lead free	2.00mm Pitch, Milli-Grid Female Crimp Terminal, 0.76µm Select Gold, Reel, Lead-Free	2.00mm Pitch, Milli-Grid Female Crimp Terminal, Gold (Au) Flash, Reel, Lead free	2.00mm Pitch, Milli-Grid Female Crimp Terminal, 0.38µm Select Gold Plating, Bag, Lead free	2.00mm Pitch, Milli-Grid Female Crimp Terminal, 0.76µm Select Gold Plating, Bag, Lead free	2.00mm Pitch, Milli-Grid Female Crimp Terminal, Gold Flash Plating, Bag, Lead free	2.00mm Pitch, Milli-Grid Female Crimp Terminal, Unplated, Reel, Lead-Free
常规
状态	Active	Active	Active	Active	Active	Active	Active
类别	Crimp Terminals	Crimp Terminals	Crimp Terminals	Crimp Terminals	Crimp Terminals	Crimp Terminals	Crimp Terminals
Series	50394	50394	50394	50394	50394	50394	50394
应用	Signal,Wire-to-Board,Wire-to-Wire	Signal,Wire-to-Board,Wire-to-Wire	Signal,Wire-to-Board,Wire-to-Wire	Signal,Wire-to-Board,Wire-to-Wire	Signal,Wire-to-Board,Wire-to-Wire	Signal,Wire-to-Board,Wire-to-Wire	Signal,Wire-to-Board,Wire-to-Wire
产品名称	Milli-Grid	Milli-Grid	Milli-Grid	Milli-Grid	Milli-Grid	Milli-Grid	Milli-Grid
UPC	800753576193	800753576209	756054436530	800753576216	800753643529	822350912617	800755557343
物理
耐用性(插拔次数) - 最多次数	50	50	50	50	50	50	-
性别	Female	Female	Female	Female	Female	Female	Female
材料 - 金属	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Phosphor Bronze
材料 - 接合部位电镀	Gold	Gold	Gold	Gold	Gold	Gold	Unplated
材料 - 终端电镀	Nickel	Nickel	Nickel	Nickel	Nickel	Nickel	-
净重	43.000/mg	48.000/mg	46.100/mg	24.261/mg	0.023/g	0.023/g	0.046/g
包装替代用料	0503948100, Bag	0503948200, Bag	0503948400, Bag	0503948051, Reel	0503948052, Reel	0503948054, Reel	-
包装形式	Reel	Reel	Reel	Bag	Bag	Bag	Reel
最薄镀层 - 接合部位	0.381µm	0.762µm	0.051µm	0.381µm	0.762µm	0.051µm	-
最薄镀层 - 端接	2.000µm	2.000µm	2.000µm	2.000µm	2.000µm	2.000µm	-
终端界面类型	Crimp or Compression	Crimp or Compression	Crimp or Compression	Crimp or Compression	Crimp or Compression	Crimp or Compression	Crimp or Compression
导线绝缘直径	1.40mm max.	1.40mm max.	1.40mm max.	1.40mm max.	1.40mm max.	1.40mm max.	1.40mm max.
线径规格 (AWG)	24,26,28,30	24,26,28,30	24,26,28,30	24,26,28,30	24,26,28,30	24,26,28,30	24,26,28,30
线缆尺寸mm²	N/A	N/A	N/A	N/A	N/A	N/A	N/A
电气
每触点最大电流	2.0A	2.0A	2.0A	2.0A	2.0A	2.0A	2.0A
电压 - 最大	125V AC (RMS)/DC	125V AC (RMS)/DC	125V AC (RMS)/DC	125V AC (RMS)/DC	125V AC (RMS)/DC	125V AC (RMS)/DC	125V AC (RMS)/DC
Solder Process Data
无铅	N/A	N/A	N/A	N/A	N/A	N/A	-
产品环境合规
China RoHS	per SJ/T 11365-2006	per SJ/T 11365-2006	per SJ/T 11365-2006	per SJ/T 11365-2006	per SJ/T 11365-2006	per SJ/T 11365-2006	per SJ/T 11365-2006
EU ELV	Compliant per 2000/53/EC	Compliant per 2000/53/EC	Compliant per 2000/53/EC	Not Relevant	Not Relevant	Not Relevant	Compliant per 2000/53/EC
EU RoHS	Compliant per EU 2015/863	Compliant per EU 2015/863	Compliant per EU 2015/863	Compliant per EU 2015/863	Compliant per EU 2015/863	Compliant per EU 2015/863	Compliant per EU 2015/863
GADSL/IMDS	Compliant with Exemption 44; 34; 33	Not Relevant	Compliant with Exemption 44; 34; 33	Compliant with Exemption 44; 34; 33	Not Relevant	Compliant with Exemption 44; 34; 33	Not Relevant
Low-Halogen Status	Low-Halogen per IEC 61249-2-21	Low-Halogen per IEC 61249-2-21	Low-Halogen per IEC 61249-2-21	Low-Halogen per IEC 61249-2-21	Low-Halogen per IEC 61249-2-21	Low-Halogen per IEC 61249-2-21	Low-Halogen per IEC 61249-2-21
Prop65	Compliant per California Proposition 65	Compliant per California Proposition 65	Compliant per California Proposition 65	Compliant per California Proposition 65	Compliant per California Proposition 65	Compliant per California Proposition 65	Compliant per California Proposition 65
REACH SVHC	Not Contained per D(2023)8585-DC (23 Jan 2024)	Not Contained per D(2023)8585-DC (23 Jan 2024)	Not Contained per D(2023)8585-DC (23 Jan 2024)	Not Contained per D(2023)8585-DC (23 Jan 2024)	Not Contained per D(2023)8585-DC (23 Jan 2024)	Not Contained per D(2023)8585-DC (23 Jan 2024)	Not Contained per D(2023)8585-DC (23 Jan 2024)
配插使用
产品编号	-	-	-	-	-	-	-
可装的端子等部件
产品编号	151100, 151192, 51110	151100, 151192, 51110	151100, 151192, 51110	151100, 151192, 51110	151100, 151192, 51110	151100, 151192, 51110	151100, 151192, 51110
施工工具
产品编号	0011010204, 0011182197, 0011267074, 0011402278, 2133091200, 0573153000, 0573153700, 0638131400, 0638190100, 0638207500, 0638543000, 0638607500, 0638643000, 0639005200, 0639046800, 0639105200, 0690081052, 0690157100, 0690371163	0011010204, 0011182197, 0011402278, 2133091200, 0573153700, 0638131400, 0638190100, 0638207500, 0638543000, 0638607500, 0638643000, 0639005200, 0639046800, 0639105200, 0690081052, 0690157100, 0690371163	0011010204, 2133091200, 0573153700, 0638131400, 0638190100, 0638543000, 0638643000, 0639005200, 0639046800, 0639105200	0011010204, 2133091200, 0638131400, 0638190100	0011010204, 2133091200, 0638131400, 0638190100	0011010204, 2133091200, 0638131400, 0638190100	0638543000, 0638643000, 0639005200, 0639046800, 0639105200
