| 间距： | 电路数： | 最大 电流额定下降： |
|---|---|---|
| 1.00、1.50 和 2.00 毫米 | 2 - 12 | 1.00 毫米间距：2.5A/2 电路 1.50 毫米间距：3.5A/2 电路 2.00 毫米间距：6.5A/2 电路 |
Pico-Lock Pico-Lock 连接器_5037640201产品功能_现货专卖
作者：小编-接插世界网来源：网络浏览量：907时间：2024-06-11 12:15:16
产品系列特点介绍
Pico-Lock 连接器有 1.00、1.50 和 2.00 毫米间距型号可供选择，Pico-Lock 线对板系统兼具低型、高电流和持久锁定等优点，特别适合有节省空间和插配牢固要求的应用。 |
|
产品亮点
特性和优点
总览
大屏笔记本电脑和平板电脑在外形设计上越来越薄，而功能则越来越强。二者结合，进而需要低型、高电流承载能力且压力锁紧牢固的新型连接器，即使在受冲击或振动影响时也可保持连接。Pico-Lock 系统现有 1.00、1.50 和 2.00 毫米间距型号可供选择，是第一个功能齐全的微型线对板连接器系统，可满足各种要求。
按行业划分的应用
汽车
Control units
Heads-up displays (HUD)
Infotainment systems
Interior equipment manufacturers
Mirrors
工业自动化
Factory Automation
Power supplies
Security systems
Smart meters
Surveillance cameras
医疗技术
On-body health monitoring systems
移动设备
Tablets
电信
Wireless modem
这并非此产品应用的最终名单。它只包括一些最常见的用途。
资源
-
Pico-Lock 线对板 连接器系统
数据表 (PDF)
产品详情
 | | | | | ||||||
| 产品编号 | 5037640201 | 5037640301 | 5037640401 | 5037640501 | 5037640601 | |||||
|---|---|---|---|---|---|---|---|---|---|---|

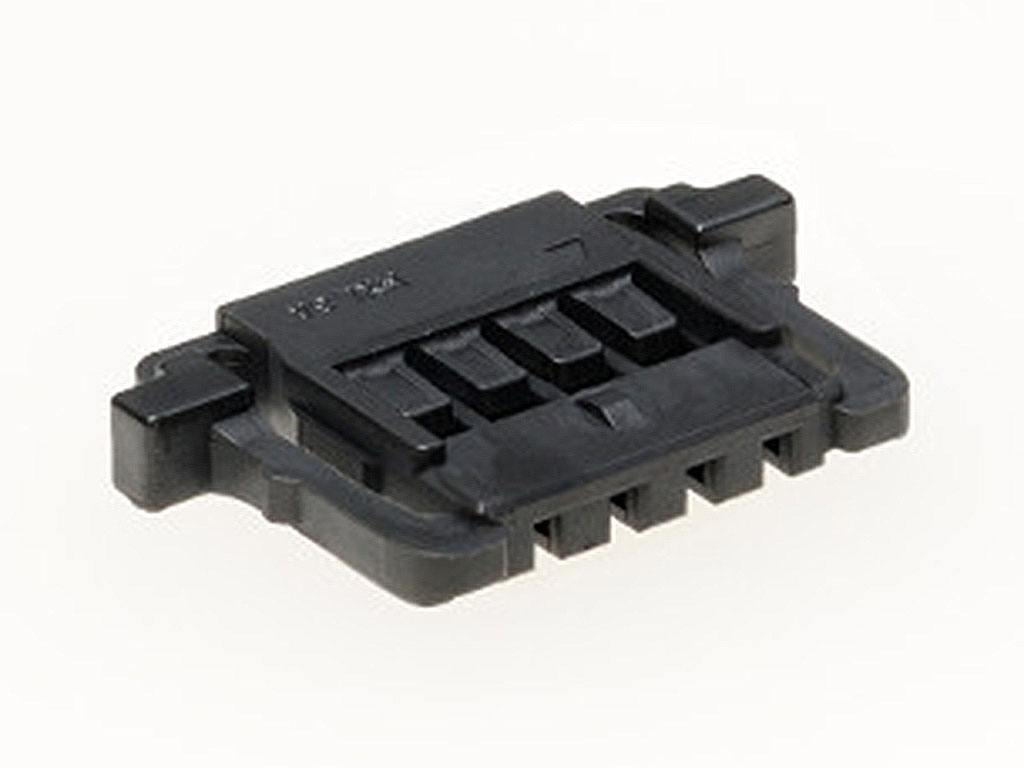

| 描述 | 1.00mm Pitch, Pico-Lock Receptacle Crimp Housing, Single Row, Positive Lock, 2 Circuits, Black | 1.00mm Pitch, Pico-Lock Receptacle Crimp Housing, Single Row, Positive Lock, 3 Circuits, Black | 1.00mm Pitch, Pico-Lock Receptacle Crimp Housing, Single Row, Positive Lock, 4 Circuits, Black | 1.00mm Pitch, Pico-Lock Receptacle Crimp Housing, Single Row, Positive Lock, 5 Circuits, Black | 1.00mm Pitch, Pico-Lock Receptacle Crimp Housing, Single Row, Positive Lock, 6 Circuits, Black | |||||
| 常规 | ||||||||||
| 状态 | Active | Active | Active | Active | Active | |||||
| 类别 | Connector Housings | Connector Housings | Connector Housings | Connector Housings | Connector Housings | |||||
| Series | 503764 | 503764 | 503764 | 503764 | 503764 | |||||
| 应用 | Signal,Wire-to-Board | Signal,Wire-to-Board | Signal,Wire-to-Board | Signal,Wire-to-Board | Signal,Wire-to-Board | |||||
| 个评论 | See Molex product specification PS-503764-001 for additional current de-rating information | See Molex product specification PS-503764-001 for additional current de-rating information | See Molex product specification PS-503764-001 for additional current de-rating information | See Molex product specification PS-503764-001 for additional current de-rating information | See Molex product specification PS-503764-001 for additional current de-rating information | |||||
| 产品名称 | Pico-Lock | Pico-Lock | Pico-Lock | Pico-Lock | Pico-Lock | |||||
| UPC | 887191579344 | 191128847070 | 887191353814 | 191128847087 | 191128847094 | |||||
| 物理 | ||||||||||
| 电路数（最多） | 2 | 3 | 4 | 5 | 6 | |||||
| 颜色-树脂 | Black | Black | Black | Black | Black | |||||
| 阻燃性 | SC-0 | SC-0 | SC-0 | SC-0 | SC-0 | |||||
| 性别 | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | |||||
| 符合灼热丝规范 | No | No | No | No | No | |||||
| 插接极性 | None | None | None | None | None | |||||
| 锁定插接部位 | Yes | Yes | Yes | Yes | Yes | |||||
| 材料 - 树脂 | High Temperature Thermoplastic | High Temperature Thermoplastic | High Temperature Thermoplastic | High Temperature Thermoplastic | High Temperature Thermoplastic | |||||
| 净重 | 16.000/mg | 23.000/mg | 31.000/mg | 39.000/mg | 47.000/mg | |||||
| 行数 | 1 | 1 | 1 | 1 | 1 | |||||
| 包装形式 | Bag | Bag | Bag | Bag | Bag | |||||
| 面板安装式 | No | No | No | No | No | |||||
| 间距 - 插配接口 | 1.00mm | 1.00mm | 1.00mm | 1.00mm | 1.00mm | |||||
| 有极性的插配件 | Yes | Yes | Yes | Yes | Yes | |||||
| 可堆叠的 | No | No | No | No | No | |||||
| 运行温度范围 | -40° to +105°C | -40° to +105°C | -40° to +105°C | -40° to +105°C | -40° to +105°C | |||||
| 机构 | ||||||||||
| UL | E29179 | E29179 | E29179 | E29179 | E29179 | |||||
| 产品环境合规 | ||||||||||
| China RoHS |  per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | |||||
| EU ELV | Not Relevant | Not Relevant | Compliant per 2000/53/EC | Not Relevant | Not Relevant | |||||
| EU RoHS | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | |||||
| GADSL/IMDS | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | |||||
| Low-Halogen Status | Low-Halogen per IEC 61249-2-21 | Low-Halogen per IEC 61249-2-21 | Low-Halogen per IEC 61249-2-21 | Low-Halogen per IEC 61249-2-21 | Low-Halogen per IEC 61249-2-21 | |||||
| Prop65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | |||||
| REACH SVHC | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | |||||
| 配插使用 | ||||||||||
| 产品编号 | 503763 | 503763 | 503763 | 503763 | 503763 | |||||
| 可装的端子等部件 | ||||||||||
| 产品编号 | 503765 | 503765 | 503765 | 503765 | 503765 | |||||
