Mini50 汽车密封式印刷线路板/电线连接器_5600230748产品功能_原装原厂

作者：小编-接插世界网来源：网络浏览量：935时间：2024-06-15 12:43:52

产品系列特点介绍

Mini50 连接器

与传统 USCAR 0.64 毫米连接器相比，密封式或非密封式 Mini50 单排和双排插座可节省 50% 的空间，其端子更小，适用于运输车辆内部环境下的更多低电流电路。

产品亮点

连接器类型：	电路数：	额外选件：
密封式和非密封式	4 - 38	比 0.64 毫米 USCAR 小 50%

PCB 接头

查找产品

连接器外壳

查找产品

压接端子

查找产品

连接器配件

查找产品

电源和信号电缆组件

查找产品

特性和优点

高温热塑型塑料外壳：
• 可耐受红外 (IR) 和波峰无铅焊接工艺，符合 ES-40000-5013 Molex 莫仕规格，最高温度达 +260°C

插孔式端子线夹适用于 0.35 平方毫米及更细的线缆：
• 与 0.64 毫米接口相比，线径减少，重量、空间和成本均降低

多个极性可供选择：
• 三个独立机械、视觉和色彩极性选项

独立次级锁闩 (ISL) 端子固定特性
• 以模塑工艺内置于插座外壳中，通过一件式设计实现应用成本节约

连接器定位 (CPA) 锁拴功能选项：
• 防止意外错拔出

更小巧的封装尺寸：
• 比 USCAR 0.64 毫米非密封式接口小 50% 左右

Mini50 非密封式连接器是业内唯一满足 USCAR 050 标准的接口：
• 提供业界唯一的 USCAR 050 所选的接口

定位功能已集成入插座头中：
• 可实现垂直或直角定位，提供电线路由和模块设计灵活性
• 在焊接加工时将插座头固定在印刷电路板上

CTX50 端子线夹设计（0.13 至 0.35 平方毫米）：
• 可使导线制造商在保持应力的同时降低线规尺寸
• 轻质小巧

密封式圆形设计：
• 可实现穿孔式线束布置

高性能密封式插座，采用哑光密封设计：
• 特别适合要求 IPX8 防护等级的密封应用

板校准和固定功能：
• 简化插座头印刷线路板的更换，并在焊接操作过程中使其固定在印刷线路板上
• 在连接器插拔过程中保护粘结接缝

总览

汽车信息娱乐和安全产品选择的激增，对汽车制造商要求供应商提供更小互连起到催化作用，因为需要在同等空间内容纳更多电子器件。Mini50 密封式和非密封式线对板插座使设备制造商能够利用更小的插针、端子和线规，在更紧凑的空间内封装电路，同时降低成本。

当今运输行业内多种设备的集成，对重量、空间和成本更小的线束产生需求。Molex 莫仕的 Mini50 线束在有限空间内提供可靠性能，特别适合信息娱乐、照明和 HVAC 系统应用。

装配错误和汽车应用的严苛、高振动环境使连接可靠性面临风险。端子插入不当、操作员疲劳以及冲击和振动导致的断开连接，都会给连接带来风险。作为响应，Mini50 Gen II 非密封连接器系统提供了许多创新，以提供更可靠的连接。

按行业划分的应用

汽车

woman traveler in motion of enjoying takes a look scenery view on the peak of mountain at the morning light, joyful taking mind cheerfully with set of hot coffee time on the cliff of mountain, hight range of the risk area camping with the car transport belong

Cameras / Sensors
Clusters / Navigation
Exterior lighting
HVAC
Headliners
Lighting
Mirrors
Power steering
Radios / DVD - Entertainment
Sensors
Switches

这并非此产品应用的最终名单。它只包括一些最常见的用途。

资源

数据报表 (PDF)

Mini50 Sealed Connector System
Mini50 Unsealed Connector System
Mini50 Gen II Unsealed Connector System

产品参考指南 (PDF)

Mini50 Connection System DPB

产品详情


产品编号	5600230721	5600230723	5600230744	5600230745	5600230748	5600230750	5600230844	5600230845	5600230848	5600230850

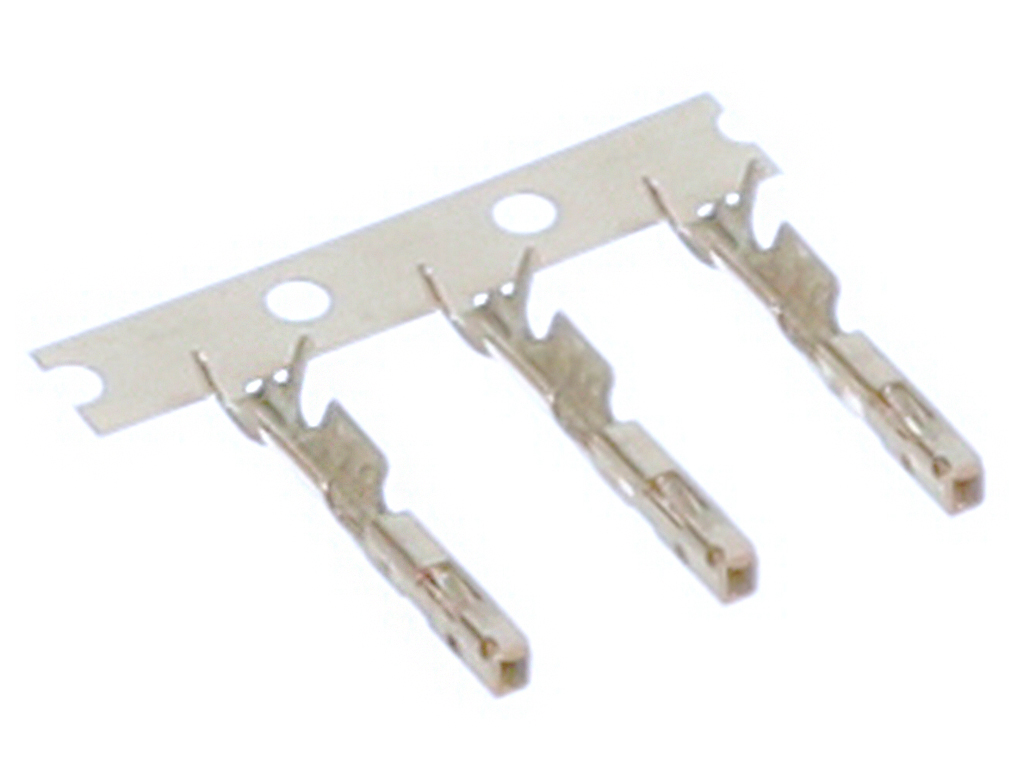

描述	CTX50 Receptacle Terminal, Unsealed, Tin Plating, M-Grip, D-Wind, Left Payoff	CTX50 Receptacle Terminal, Unsealed, Tin Plating, M-Grip, B-Wind, Right Payoff	CTX50 Receptacle Terminal, Unsealed, Tin Plating, S-Grip, D-Wind, Left Payoff	CTX50 Receptacle Terminal, Unsealed, Tin Plating, S-Grip, B-Wind, Right Payoff	CTX50 Receptacle Terminal, Unsealed, Tin Plating, L-Grip, D-Wind, Left Payoff	CTX50 Receptacle Terminal, Unsealed, Tin Plating, L-Grip, B-Wind, Right Payoff	CTX50 Receptacle Terminal, Unsealed, Gold Plating, S-Grip, D-Wind, Left Payoff	CTX50 Receptacle Terminal, Unsealed, Gold Plating, S-Grip, B-Wind, Right Payoff	CTX50 Receptacle Terminal, Unsealed, Gold Plating, L-Grip, D-Wind, Left Payoff	CTX50 Receptacle Terminal, Unsealed, Gold Plating, L-Grip, B-Wind, Right Payoff
常规
状态	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
类别	Crimp Terminals	Crimp Terminals	Crimp Terminals	Crimp Terminals	Crimp Terminals	Crimp Terminals	Crimp Terminals	Crimp Terminals	Crimp Terminals	Crimp Terminals
Series	560023	560023	560023	560023	560023	560023	560023	560023	560023	560023
应用	Power,Wire-to-Board	Power,Wire-to-Board	Power,Wire-to-Board	Power,Wire-to-Board	Power,Wire-to-Board	Power,Wire-to-Board	Power,Wire-to-Board	Power,Wire-to-Board	Power,Wire-to-Board	Power,Wire-to-Board
个评论	-	Right Reel Payoff; For automatic and semi-automatic crimping, use Left Reel Payoff terminals. See Sales Drawing for Left Reel Payoff Part Numbers.	-	Right Reel Payoff; For automatic and semi-automatic crimping, use Left Reel Payoff terminals. See Sales Drawing for Left Reel Payoff Part Numbers.	-	Right Reel Payoff; For automatic and semi-automatic crimping, use Left Reel Payoff terminals. See Sales Drawing for Left Reel Payoff Part Numbers.	-	Right Reel Payoff; For automatic and semi-automatic crimping, use Left Reel Payoff terminals. See Sales Drawing for Left Reel Payoff Part Numbers.	-	Right Reel Payoff; For automatic and semi-automatic crimping, use Left Reel Payoff terminals. See Sales Drawing for Left Reel Payoff Part Numbers.
产品名称	CTX50	CTX50	CTX50	CTX50	CTX50	CTX50	CTX50	CTX50	CTX50	CTX50
UPC	196823252877	196823252884	196823252891	196823252907	196823252914	196823252921	196823332074	196823332050	196823332081	196823332067
物理
耐用性(插拔次数) - 最多次数	10	10	10	10	10	10	10	10	10	10
性别	Female	Female	Female	Female	Female	Female	Female	Female	Female	Female
夹具代码	M	M	S	S	L	L	S	S	L	L
材料 - 金属	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy
材料 - 接合部位电镀	Tin	Tin	Tin	Tin	Tin	Tin	Gold	Gold	Gold	Gold
净重	0.044/g	0.043/g	0.044/g	0.044/g	0.044/g	0.044/g	0.044/g	0.044/g	0.044/g	0.044/g
包装形式	Reel	Reel	Reel	Reel	Reel	Reel	Reel	Reel	Reel	Reel
终端界面类型	Crimp or Compression	Crimp or Compression	Crimp or Compression	Crimp or Compression	Crimp or Compression	Crimp or Compression	Crimp or Compression	Crimp or Compression	Crimp or Compression	Crimp or Compression
导线绝缘直径	0.95-1.05mm	0.95-1.05mm	0.75-1.05mm	0.75-1.05mm	1.10-1.40mm	1.10-1.40mm	0.75-1.05mm	0.75-1.05mm	1.10-1.40mm	1.10-1.40mm
线径规格 (AWG)	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
线缆尺寸mm²	0.22	0.22	0.13	0.13	0.35	0.35	0.13	0.13	0.35	0.35
电气
每触点最大电流	4.0A	4.0A	4.0A	4.0A	4.0A	4.0A	5.0A	5.0A	7.5A	7.5A
电压 - 最大	14V DC	14V DC	14V DC	14V DC	14V DC	14V DC	14V DC	14V DC	14V DC	14V DC
产品环境合规
China RoHS	Not Relevant	Not Relevant	Not Relevant	Not Reviewed	per SJ/T 11365-2006	per SJ/T 11365-2006	Not Reviewed	Not Reviewed	Not Relevant	Not Reviewed
EU ELV	Compliant per 2000/53/EC	Compliant per 2000/53/EC	Compliant per 2000/53/EC	Not Reviewed	Compliant per 2000/53/EC	Compliant per 2000/53/EC	Not Reviewed	Not Reviewed	Compliant per 2000/53/EC	Not Reviewed
EU RoHS	Compliant per EU 2015/863	Compliant per EU 2015/863	Compliant per EU 2015/863	Not Reviewed	Compliant per EU 2015/863	Compliant per EU 2015/863	Not Reviewed	Not Reviewed	Compliant per EU 2015/863	Not Reviewed
GADSL/IMDS	Compliant with Exemption 44; 33; 34	Compliant with Exemption 44; 33; 34	Compliant with Exemption 44; 34; 33	-	Compliant with Exemption 44; 34; 33	Compliant with Exemption 44; 34; 33	-	-	Compliant with Exemption 44; 34; 33	-
Low-Halogen Status	Low-Halogen per IEC 61249-2-21	Not Relevant	Low-Halogen per IEC 61249-2-21	Not Reviewed	Low-Halogen per IEC 61249-2-21	Low-Halogen per IEC 61249-2-21	Not Reviewed	Not Reviewed	Not Relevant	Not Reviewed
Prop65	Compliant per California Proposition 65	Compliant per California Proposition 65	Compliant per California Proposition 65	-	Compliant per California Proposition 65	Compliant per California Proposition 65	-	-	Compliant per California Proposition 65	-
REACH SVHC	Not Contained per D(2023)8585-DC (23 Jan 2024)	Not Contained per D(2023)8585-DC (23 Jan 2024)	Not Contained per D(2023)8585-DC (23 Jan 2024)	Not Reviewed	Not Contained per D(2023)8585-DC (23 Jan 2024)	Not Contained per D(2023)8585-DC (23 Jan 2024)	Not Reviewed	Not Reviewed	Not Contained per D(2023)8585-DC (23 Jan 2024)	Not Reviewed
配插使用
产品编号	-	-	-	-	-	-	-	-	-	-
可装的端子等部件
产品编号	34791, 206523, 34959	34791, 206523, 34959	34791, 206523, 34959	34791, 206523, 34959	34791, 206523, 34959	34791, 206523, 34959	34791, 206523, 34959	34791, 206523, 34959	34791, 206523, 34959	34791, 206523, 34959
施工工具
产品编号	0638248600, 0638084800, 0638084810, 0638282000	0638248600, 0638282000	0638248600, 0638084300, 0638084310, 0638282000	0638248600, 0638282000	0638248600, 2157861900, 2157861910, 0638282000	0638248600, 0638282000	0638248600, 0638084300, 0638084310, 0638282000	0638248600, 0638282000	0638248600, 2157861900, 2157861910, 0638282000	0638282000
