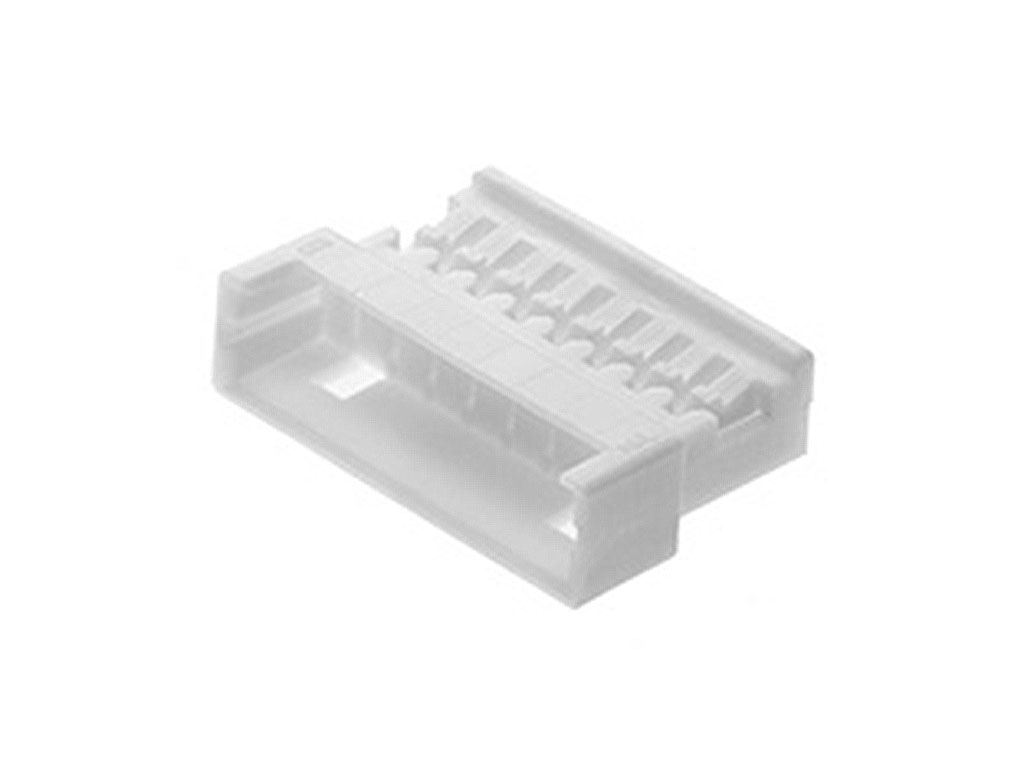

PicoBlade PicoBlade 连接器_51047-0300对插配件_原装销售
作者：小编-接插世界网来源：网络浏览量：761时间：2024-11-16 17:27:49
产品系列特点介绍
PicoBlade 连接器高性能 PicoBlade 线对板和线对线连接器具有镀锡和镀金型号，可在各种应用和行业中提供出色的灵活性、可靠性和耐用性。 |
|
产品亮点
特性和优点
总览
客户需要更高的可靠性和耐久性，因为加固型应用可能会受到冲击、振动或粗暴对待，这些情况可能会导致端子脱落和信号干扰。PicoBlade 连接器系统采用两点接触设计，可实现可靠的电气连接，并采用摩擦锁以实现牢固插配；镀金型号提供出色的可靠性和耐久性。
PicoBlade 线对板连接器的现有用户希望获得比现有镀锡型号所支持的更高的导电率。Molex莫仕莫仕 推出了 PicoBlade 镀金线对板连接器，带直角方向的通孔和 SMT 插座头。
客户需要在不影响标准线对板/线对线连接器整体质量的情况下实现紧凑性。Molex莫仕莫仕 提供具有可靠两点接触设计和摩擦锁的 1.25 毫米间距连接器。
对于使用行业标准吸嘴的 SMT 插座头来说，客户需要大批量真空取放装配。插座头顶部的真空罩和用于取放装配的平坦区域可轻松实现自动放置电路板。
多个采购和工程步骤会增加成本、花费更多时间并增加采购流程的复杂性。PicoBlade 连接器提供 2 至 17 个电路、带通孔和 SMT 安装的镀锡和镀金型号，以及垂直和直角方向。
按行业划分的应用
汽车
Body control modules
Combination switches
In-vehicle comfort and infotainment
Instrument panels
Shifters
Steering
工业自动化
Drones
Electric test equipment
Security systems
Smart meters
网络
Servers
医疗技术
Hearing aids
Monitors
这并非此产品应用的最终名单。它只包括一些最常见的用途。
资源
-
PicoBlade标准电缆组件
数据表 (PDF)
产品详情
 | | | | | | | | | ||
| 产品编号 | 510470200 | 510470300 | 510470400 | 510470500 | 510470600 | 510470700 | 510470800 | 510470900 | 510471000 | |
|---|---|---|---|---|---|---|---|---|---|---|
| 描述 | 1.25mm Pitch, PicoBlade Plug Crimp Housing, Single Row, Friction Lock, 2 Circuits, Natural | 1.25mm Pitch, PicoBlade Plug Crimp Housing, Single Row, Friction Lock, 3 Circuits, Natural | 1.25mm Pitch, PicoBlade Plug Crimp Housing, Single Row, Friction Lock, 4 Circuits, Natural | 1.25mm Pitch, PicoBlade Plug Crimp Housing, Single Row, Friction Lock, 5 Circuits, Natural | 1.25mm Pitch, PicoBlade Plug Crimp Housing, Single Row, Friction Lock, 6 Circuits, Natural | 1.25mm Pitch, PicoBlade Plug Crimp Housing, Single Row, Friction Lock, 7 Circuits, Natural | 1.25mm Pitch, PicoBlade Plug Crimp Housing, Single Row, Friction Lock, 8 Circuits, Natural | 1.25mm Pitch, PicoBlade Plug Crimp Housing, Single Row, Friction Lock, 9 Circuits, Natural | 1.25mm Pitch, PicoBlade Plug Crimp Housing, Single Row, Friction Lock, 10 Circuits, Natural | |
| 常规 | ||||||||||
| 状态 | Active | Active | Active | Active | Active | Active | Active | Active | Active | |
| 类别 | Connector Housings | Connector Housings | Connector Housings | Connector Housings | Connector Housings | Connector Housings | Connector Housings | Connector Housings | Connector Housings | |
| Series | 51047 | 51047 | 51047 | 51047 | 51047 | 51047 | 51047 | 51047 | 51047 | |
| 应用 | Signal,Wire-to-Wire | Signal,Wire-to-Wire | Signal,Wire-to-Wire | Signal,Wire-to-Wire | Signal,Wire-to-Wire | Signal,Wire-to-Wire | Signal,Wire-to-Wire | Signal,Wire-to-Wire | Signal,Wire-to-Wire | |
| 产品名称 | PicoBlade | PicoBlade | PicoBlade | PicoBlade | PicoBlade | PicoBlade | PicoBlade | PicoBlade | PicoBlade | |
| UPC | 800753575226 | 800753630420 | 800753756922 | 800753756182 | 800753575233 | 800754382786 | 800753756939 | 800754314602 | 800753756946 | |
| 物理 | ||||||||||
| 电路数（最多） | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | |
| 颜色-树脂 | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | |
| 性别 | Plug | Plug | Plug | Plug | Plug | Plug | Plug | Plug | Plug | |
| 符合灼热丝规范 | No | No | No | No | No | No | No | No | No | |
| 插接极性 | None | None | None | None | None | None | None | None | None | |
| 锁定插接部位 | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
| 材料 - 树脂 | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | |
| 净重 | 52.200/mg | 68.000/mg | 0.080/g | 96.800/mg | 111.700/mg | 126.500/mg | 141.400/mg | 156.200/mg | 171.100/mg | |
| 行数 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| 包装形式 | Bag | Bag | Bag | Bag | Bag | Bag | Bag | Bag | Bag | |
| 面板安装式 | No | No | No | No | No | No | No | No | No | |
| 间距 - 插配接口 | 1.25mm | 1.25mm | 1.25mm | 1.25mm | 1.25mm | 1.25mm | 1.25mm | 1.25mm | 1.25mm | |
| 有极性的插配件 | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | |
| 可堆叠的 | No | No | No | No | No | No | No | No | No | |
| 运行温度范围 | -40° to +85°C | -40° to +85°C | -40° to +85°C | -40° to +85°C | -40° to +85°C | -40° to +85°C | -40° to +85°C | -40° to +85°C | -40° to +85°C | |
| 机构 | ||||||||||
| UL | E29179 | E29179 | E29179 | E29179 | E29179 | E29179 | E29179 | E29179 | E29179 | |
| 产品环境合规 | ||||||||||
| China RoHS |  per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | |
| EU ELV | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | |
| EU RoHS | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | |
| GADSL/IMDS | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | |
| Low-Halogen Status | Not Low-Halogen per IEC 61249-2-21 | Not Low-Halogen per IEC 61249-2-21 | Not Low-Halogen per IEC 61249-2-21 | Not Low-Halogen per IEC 61249-2-21 | Not Low-Halogen per IEC 61249-2-21 | Not Low-Halogen per IEC 61249-2-21 | Not Low-Halogen per IEC 61249-2-21 | Not Low-Halogen per IEC 61249-2-21 | Not Low-Halogen per IEC 61249-2-21 | |
| Prop65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | |
| REACH SVHC | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | |
| 配插使用 | ||||||||||
| 产品编号 | 51021, 15134 | 51021, 15134 | 51021, 15134 | 51021, 15134 | 51021, 15134 | 51021, 15134 | 51021, 15134 | 51021 | 51021, 15134 | |
| 可装的端子等部件 | ||||||||||
| 产品编号 | 50125, 50133, 214922, 214923 | 50125, 50133, 214922, 214923 | 50125, 50133, 214922, 214923 | 50125, 50133, 214922, 214923 | 50125, 50133, 214922, 214923 | 50125, 50133, 214922, 214923 | 50125, 50133, 214922, 214923 | 50125, 50133, 214922, 214923 | 50125, 50133, 214922, 214923 | |
