| 间距： | 电路数： | 最大 电流额定下降： |
|---|---|---|
| 1.00、1.50 和 2.00 毫米 | 2 - 12 | 1.00 毫米间距：2.5A/2 电路 1.50 毫米间距：3.5A/2 电路 2.00 毫米间距：6.5A/2 电路 |

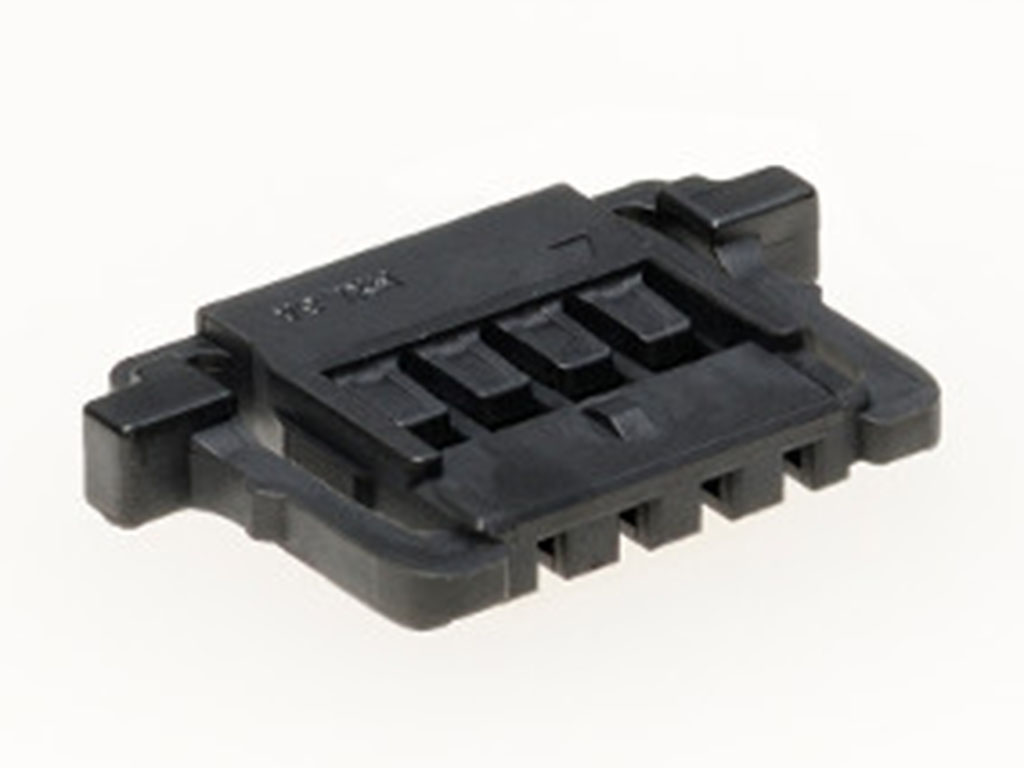

Pico-Lock Pico-Lock 连接器_5040510301中文参数_原装销售
作者：小编-接插世界网来源：网络浏览量：1098时间：2024-06-12 09:07:37
产品系列特点介绍
Pico-Lock 连接器有 1.00、1.50 和 2.00 毫米间距型号可供选择，Pico-Lock 线对板系统兼具低型、高电流和持久锁定等优点，特别适合有节省空间和插配牢固要求的应用。 |
|
产品亮点
特性和优点
总览
大屏笔记本电脑和平板电脑在外形设计上越来越薄，而功能则越来越强。二者结合，进而需要低型、高电流承载能力且压力锁紧牢固的新型连接器，即使在受冲击或振动影响时也可保持连接。Pico-Lock 系统现有 1.00、1.50 和 2.00 毫米间距型号可供选择，是第一个功能齐全的微型线对板连接器系统，可满足各种要求。
按行业划分的应用
汽车
Control units
Heads-up displays (HUD)
Infotainment systems
Interior equipment manufacturers
Mirrors
工业自动化
Factory Automation
Power supplies
Security systems
Smart meters
Surveillance cameras
医疗技术
On-body health monitoring systems
移动设备
Tablets
电信
Wireless modem
这并非此产品应用的最终名单。它只包括一些最常见的用途。
资源
-
Pico-Lock 线对板 连接器系统
数据表 (PDF)
产品详情
 | | | | | | | | | | |
| 产品编号 | 5040510201 | 5040510301 | 5040510401 | 5040510501 | 5040510601 | 5040510701 | 5040510801 | 5040510901 | 5040511001 | 5040511101 |
|---|---|---|---|---|---|---|---|---|---|---|
| 描述 | 1.50mm Pitch, Pico-Lock Receptacle Crimp Housing, Single Row, Positive Lock, 2 Circuits, Black | 1.50mm Pitch, Pico-Lock Receptacle Crimp Housing, Single Row, Positive Lock, 3 Circuits, Black | 1.50mm Pitch, Pico-Lock Receptacle Crimp Housing, Single Row, Positive Lock, 4 Circuits, Black | 1.50mm Pitch, Pico-Lock Receptacle Crimp Housing, Single Row, Positive Lock, 5 Circuits, Black | 1.50mm Pitch, Pico-Lock Receptacle Crimp Housing, Single Row, Positive Lock, 6 Circuits, Black | 1.50mm Pitch, Pico-Lock Receptacle Crimp Housing , Single Row, Positive Lock, 7 Circuits, Black | 1.50mm Pitch, Pico-Lock Receptacle Crimp Housing, Single Row, Positive Lock, 8 Circuits, Black | 1.50mm Pitch, Pico-Lock Receptacle Crimp Housing, Single Row, Positive Lock, 9 Circuits, Black | 1.50mm Pitch, Pico-Lock Receptacle Crimp Housing, Single Row, Positive Lock, 10 Circuits, Black | 1.50mm Pitch, Pico-Lock Receptacle Crimp Housing, Single Row, Positive Lock, 11 Circuits, Black |
| 常规 | ||||||||||
| 状态 | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| 类别 | Connector Housings | Connector Housings | Connector Housings | Connector Housings | Connector Housings | Connector Housings | Connector Housings | Connector Housings | Connector Housings | Connector Housings |
| Series | 504051 | 504051 | 504051 | 504051 | 504051 | 504051 | 504051 | 504051 | 504051 | 504051 |
| 应用 | Signal,Wire-to-Board | Signal,Wire-to-Board | Signal,Wire-to-Board | Signal,Wire-to-Board | Signal,Wire-to-Board | Signal,Wire-to-Board | Signal,Wire-to-Board | Signal,Wire-to-Board | Signal,Wire-to-Board | Signal,Wire-to-Board |
| 个评论 | See Molex product specification PS-504051-001 for additional current de-rating information | See Molex product specification PS-504051-001 for additional current de-rating information | See Molex product specification PS-504051-001 for additional current de-rating information | See Molex product specification PS-504051-001 for additional current de-rating information | See Molex product specification PS-504051-001 for additional current de-rating information | See Molex product specification PS-504051-001 for additional current de-rating information | See Molex product specification PS-504051-001 for additional current de-rating information | See Molex product specification PS-504051-001 for additional current de-rating information | See Molex product specification PS-504051-001 for additional current de-rating information | See Molex product specification PS-504051-001 for additional current de-rating information |
| 产品名称 | Pico-Lock | Pico-Lock | Pico-Lock | Pico-Lock | Pico-Lock | Pico-Lock | Pico-Lock | Pico-Lock | Pico-Lock | Pico-Lock |
| UPC | 191128805094 | 191128805100 | 887191335360 | 889056243926 | 884982939899 | 884982939905 | 887191259246 | 191128805117 | 884982939929 | 191128805124 |
| 物理 | ||||||||||
| 电路数（最多） | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| 颜色-树脂 | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black |
| 阻燃性 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
| 性别 | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| 符合灼热丝规范 | No | No | No | No | No | No | No | No | No | No |
| 插接极性 | None | None | None | None | None | None | None | None | None | None |
| 锁定插接部位 | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 材料 - 树脂 | High Temperature Thermoplastic | High Temperature Thermoplastic | High Temperature Thermoplastic | High Temperature Thermoplastic | High Temperature Thermoplastic | High Temperature Thermoplastic | High Temperature Thermoplastic | High Temperature Thermoplastic | High Temperature Thermoplastic | High Temperature Thermoplastic |
| 净重 | 38.300/mg | 47.100/mg | 55.500/mg | 0.065/g | 0.080/g | 82.500/mg | 91.400/mg | 100.100/mg | 109.000/mg | 117.900/mg |
| 行数 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 包装形式 | Bag | Bag | Bag | Bag | Bag | Bag | Bag | Bag | Bag | Bag |
| 面板安装式 | No | No | No | No | No | No | No | No | No | No |
| 间距 - 插配接口 | 1.50mm | 1.50mm | 1.50mm | 1.50mm | 1.50mm | 1.50mm | 1.50mm | 1.50mm | 1.50mm | 1.50mm |
| 有极性的插配件 | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 可堆叠的 | No | No | No | No | No | No | No | No | No | No |
| 运行温度范围 | -40° to +105°C | -40° to +105°C | -40° to +105°C | -40° to +105°C | -40° to +105°C | -40° to +105°C | -40° to +105°C | -40° to +105°C | -40° to +105°C | -40° to +105°C |
| 机构 | ||||||||||
| CSA | LR19980 | LR19980 | LR19980 | LR19980 | LR19980 | LR19980 | LR19980 | LR19980 | LR19980 | LR19980 |
| UL | E29179 | E29179 | E29179 | E29179 | E29179 | E29179 | E29179 | E29179 | E29179 | E29179 |
| 产品环境合规 | ||||||||||
| China RoHS |  per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 | per SJ/T 11365-2006 |
| EU ELV | Not Relevant | Not Relevant | Compliant per 2000/53/EC | Compliant per 2000/53/EC | Compliant per 2000/53/EC | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant |
| EU RoHS | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 | Compliant per EU 2015/863 |
| GADSL/IMDS | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant | Not Relevant |
| Low-Halogen Status | Low-Halogen per IEC 61249-2-21 | Low-Halogen per IEC 61249-2-21 | Low-Halogen per IEC 61249-2-21 | Low-Halogen per IEC 61249-2-21 | Low-Halogen per IEC 61249-2-21 | Low-Halogen per IEC 61249-2-21 | Low-Halogen per IEC 61249-2-21 | Low-Halogen per IEC 61249-2-21 | Low-Halogen per IEC 61249-2-21 | Low-Halogen per IEC 61249-2-21 |
| Prop65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 | Compliant per California Proposition 65 |
| REACH SVHC | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) | Not Contained per D(2023)8585-DC (23 Jan 2024) |
| 配插使用 | ||||||||||
| 产品编号 | 504050 | 504050 | 504050 | 504050 | 504050 | 504050 | 504050 | 504050 | 504050 | 504050 |
| 可装的端子等部件 | ||||||||||
| 产品编号 | 504052 | 504052 | 504052 | 504052 | 504052 | 504052 | 504052 | 504052 | 504052 | 504052 |
